Generator protection relay VAMP 210
Product Documentation
Complete product documentation is available in the Support section.

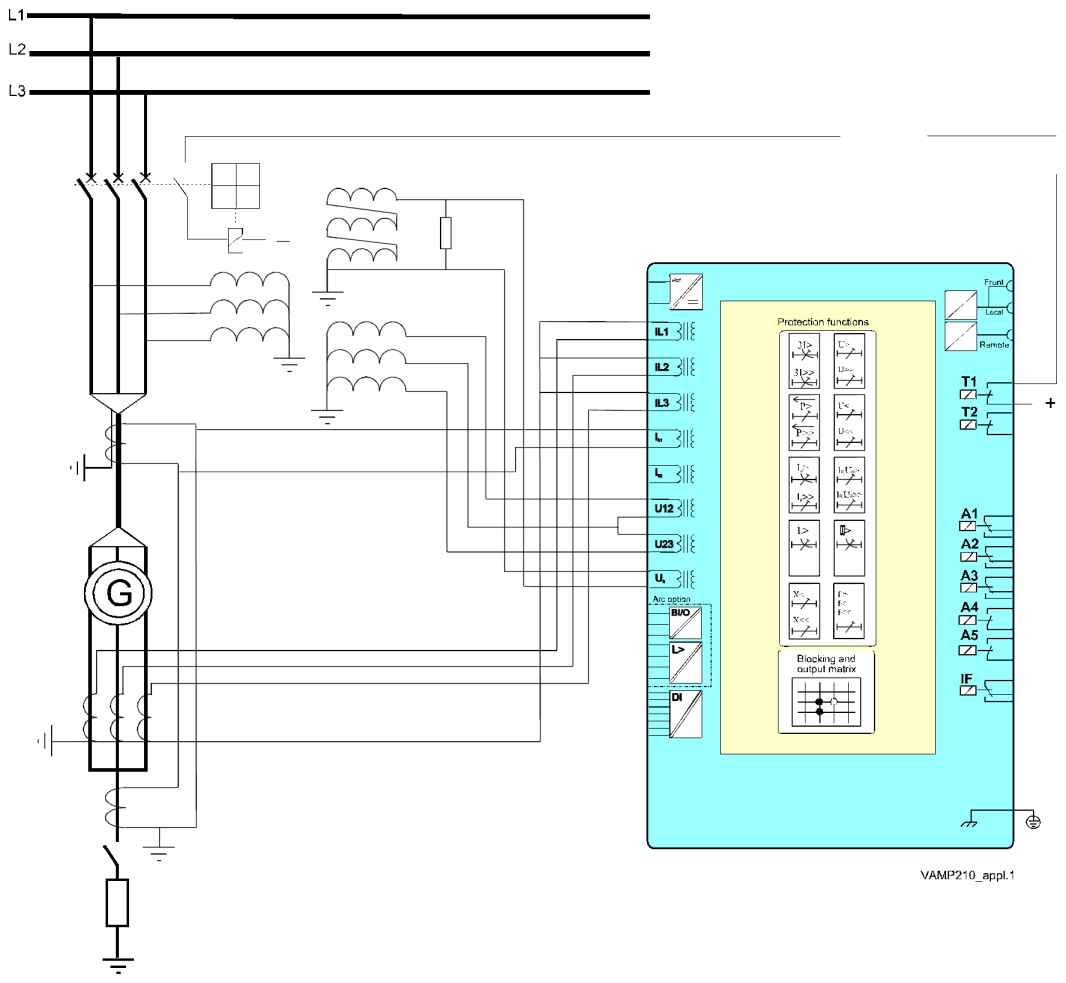

VAMP 210 Documentation Connection DiagramThe protection functions, many communication protocols and numerous auxiliary functions make the VAMP 210 perfect for small and medium sized generators.
The generator protection relay VAMP 210, together with the Differential protection relay VAMP 265, constitutes a complete generator protection scheme.
The generator protection relay VAMP 210 is suitable for solidly as well as high or low resistance grounded systems.
The relay combines a selective ground fault protection, including back-up function, and a busbar earth fault protection. The selective directional earth fault protection is used in high resistance earthed systems. Low resistance or solidly earthed systems are using differential earth fault protection.
All protection stages can be in simultaneous use.
Protection
- Three overcurrent stages
- One overcurrent stage with voltage restraint
- Two earth fault stages
- One directional earth fault stage
- Two residual overvoltage stages
- Thermal image overload stage
- Current unbalance stage
- Loss of excitation stage
- Two reverse power stages
- Two overvoltage stages
- Two undervoltage stages
- Two overfrequency stages
- Two underfrequency stages
