Motor protection relay VAMP 150

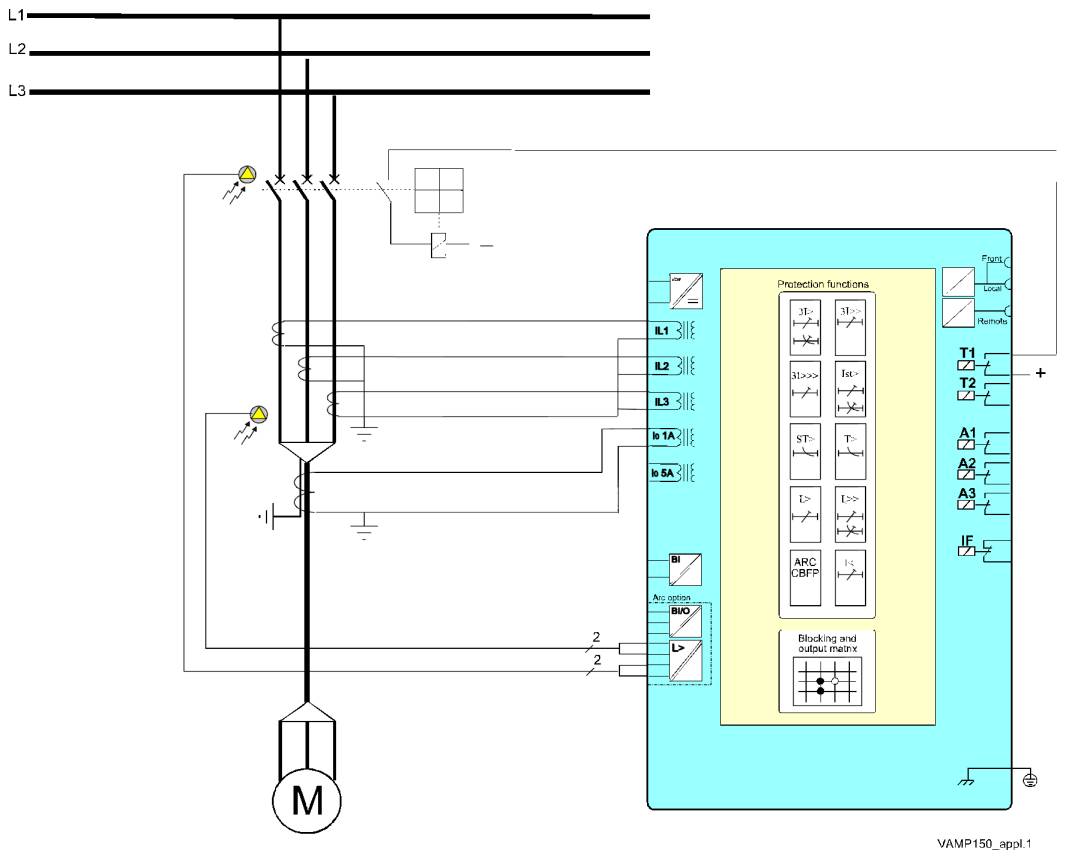

VAMP 150 is a cost-effective motor protection with all the basic protection functions. The relay is used to protect circuit breaker controlled three phase AC motors.

Features

• The calculated motor temperature is based on the actual motor load.
• The temperature value, in percentage of trip limit, is available on the front panel display.
• The estimated remaining time, with constant load, to trip is shown to the user on the display.
• The relay is provided with one analogue output, mA-signal, for any measured or calculated value.

Protection

• Thermal overload stage
• Three overcurrent stages
• Two earth-fault stages
• One undercurrent stage
• Phase unbalance stage
• Current unbalance stage
• Frequent starts supervision
• Start-up supervision and stall protection
• Circuit breaker failure
• Trip circuit supervision
• Arc fault protection ( option )
• Disturbance recorder
